Computer Numerical Control (CNC) machines represent the pinnacle of modern manufacturing technology, enabling precise, repeatable, and efficient production processes. At the heart of these sophisticated systems lie carefully engineered motion mechanisms that translate digital instructions into physical movement with extraordinary accuracy.
From the high-speed rotation of spindles to the precise positioning of axes, every component plays a critical role in determining the machine's performance capabilities. This comprehensive guide explores the fundamental motion systems that power CNC equipment, with particular focus on how these mechanisms operate in a cnc router machine and other common CNC configurations.
Understanding these systems is essential for anyone involved in manufacturing, engineering, or CNC operation, as it provides insight into machine capabilities, limitations, and maintenance requirements. Whether you're working with a simple cnc router machine or a complex multi-axis machining center, the underlying principles of motion control remain consistent.
Main Motion Systems in CNC Machines
The main motion system constitutes the primary rotating or cutting action in a CNC machine, typically providing the power and speed required for material removal. In most machining centers, this function is performed by the spindle unit, which drives the cutting tool or workpiece at varying speeds to achieve the desired machining operations.
In a cnc router machine, the main motion system powers the router spindle, which rotates cutting tools such as end mills, drill bits, and engraving tools at speeds ranging from a few thousand to over 30,000 revolutions per minute (RPM). This high-speed rotation is essential for efficiently cutting materials like wood, plastic, metal, and composite materials.
Main motion systems are characterized by their power output, speed range, torque characteristics, and precision. Modern CNC machines utilize advanced motor technologies, including AC servo motors and variable frequency drives, to achieve precise speed control across a wide range. This allows operators to select optimal cutting speeds for different materials and tooling.
Key components of a main motion system include the spindle motor, transmission mechanism (often belt-driven or direct-drive), spindle bearings, and speed control system. The design of these components directly impacts the machine's performance, with high-precision bearings reducing runout and vibration for superior surface finishes.
In addition to rotational speed, main motion systems must deliver sufficient torque to maintain cutting efficiency, especially when working with tough materials. This balance between speed and torque is carefully engineered into the system, with many CNC machines offering constant power output across a range of speeds.
The cnc router machine exemplifies how main motion systems have evolved to meet specific industry needs, with specialized spindles designed for high-speed cutting of non-ferrous materials while maintaining the precision required for intricate designs and patterns.

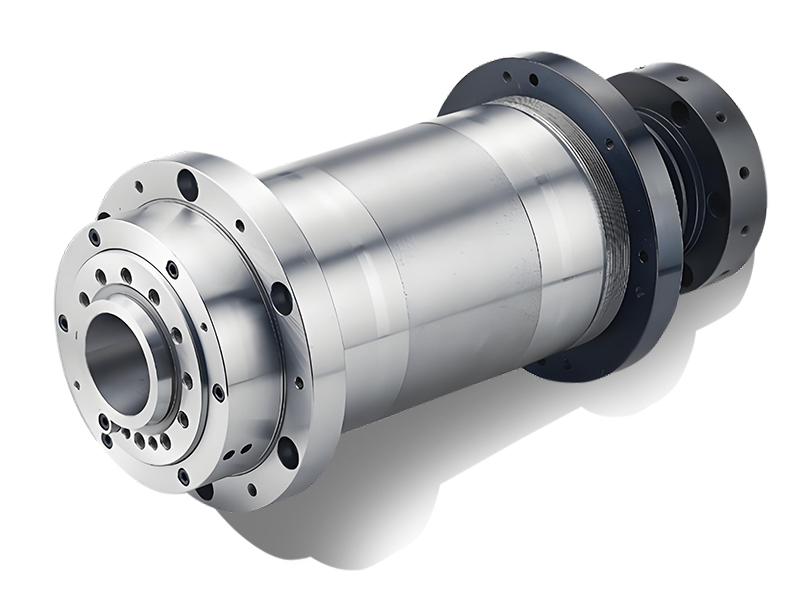

Main Spindle Assembly
A cross-sectional view of a high-precision CNC spindle system, highlighting the motor, bearings, and tool interface that constitute the main motion system.
Main Motion System Characteristics
Feed Motion Systems in CNC Machines
While the main motion system provides the cutting action, the feed motion system is responsible for positioning and moving the workpiece or cutting tool relative to each other along specified axes. This precise movement enables the creation of complex shapes and features with tight tolerances, often measured in thousandths of an inch or hundredths of a millimeter.
In a cnc router machine, feed motion typically occurs along three primary axes (X, Y, and Z), with advanced models offering additional rotational axes for more complex machining operations. The X and Y axes control horizontal movement, while the Z axis manages vertical positioning of the router spindle relative to the workpiece.
Feed motion systems rely on a combination of precision ball screws or lead screws, linear guideways, and servo motors to convert rotational motion into precise linear movement. Ball screws are particularly common in high-precision applications due to their low friction, high efficiency, and ability to maintain positional accuracy over thousands of cycles.
The performance of a feed motion system is evaluated by several key parameters: positioning accuracy (how closely the system reaches the target position), repeatability (how consistently the system returns to a position), and feed rate (the speed at which movement occurs). Modern CNC systems can achieve positioning accuracies of ±0.001mm or better, with feed rates exceeding 100 meters per minute in high-performance machines.
In the cnc router machine, feed motion systems must balance speed and precision to maintain productivity while ensuring clean, accurate cuts. This is particularly important when working with decorative or functional components that require smooth surfaces and precise dimensions.
Advanced feed motion systems incorporate closed-loop feedback mechanisms using linear scales or rotary encoders to continuously monitor and correct position, compensating for any mechanical imperfections or external forces that might affect accuracy. This closed-loop control is essential for maintaining precision during long production runs or when machining large workpieces.
The integration of multiple axes allows for complex contouring operations, where the feed motion system coordinates movement across all axes simultaneously to create intricate shapes. This capability is what enables CNC machines to produce complex parts that would be nearly impossible to manufacture with manual equipment.
Precision Feed Mechanism
A detailed view of a CNC feed motion system, illustrating ball screws, linear guideways, and servo motors that enable precise positioning along machine axes.
Ball Screw Advantages
- High efficiency (90-95%) compared to lead screws
- Low friction and wear characteristics
- Superior positional accuracy and repeatability
- Ability to handle high axial loads
Common CNC Axes Configurations
- 3-axis (X, Y, Z): Standard for cnc router machine
- 4-axis: Adds rotational axis (A or B)
- 5-axis: Adds two rotational axes for full contouring
- Multi-axis: Specialized configurations for complex parts
Tool Change Mechanisms in CNC Machines
Modern CNC machining often requires multiple cutting tools to complete a single part, each designed for specific operations such as drilling, milling, tapping, or reaming. Tool change mechanisms enable automatic exchange of these tools, minimizing downtime and improving productivity compared to manual tool changes.
While simpler cnc router machine models may use manual tool changes or basic automatic systems, advanced CNC machining centers feature sophisticated tool changers capable of storing dozens of tools and exchanging them in seconds. These systems not only save time but also improve accuracy by maintaining consistent tool offsets and reducing human error.
There are two primary types of automatic tool change systems: turret-type changers and magazine-type changers. Turret changers mount tools on a rotating turret that indexes to bring the desired tool into position. This design offers very fast tool changes (often under 1 second) but typically has a more limited number of tool stations (8-12).
Magazine-type changers store tools in a separate magazine, which can hold anywhere from 10 to over 100 tools depending on the machine configuration. A robotic arm or tool changer mechanism retrieves the required tool from the magazine and exchanges it with the tool in the spindle. While slightly slower than turret changers (typically 2-5 seconds per change), magazine systems offer greater tool capacity and flexibility.
Tool change mechanisms rely on precise motion control to ensure accurate tool alignment and secure clamping. Each tool is identified by a unique number, and the CNC system tracks tool locations, offsets, and usage to optimize machining processes. Advanced systems even monitor tool wear and can automatically replace worn tools with backups when necessary.
In a cnc router machine used for complex woodworking or sign-making, tool change systems enable the production of intricate designs that require different cutting tools for various features. For example, a single project might use a roughing bit for material removal, a ball-nose bit for contouring, and a V-bit for detailed engraving.
The reliability of tool change mechanisms is critical in production environments, as any failure can result in costly downtime. Manufacturers incorporate multiple sensors and safety features to ensure proper tool clamping, prevent collisions, and verify successful tool changes before machining resumes.
Recent advancements in tool change technology include vision systems for tool identification and measurement, as well as wireless tool holders that transmit data about tool condition and performance directly to the CNC controller. These innovations are further enhancing the efficiency and reliability of automated tool changing.
Automatic Tool Changer
A magazine-type automatic tool changer demonstrating the robotic mechanism that exchanges tools in the spindle with those stored in the tool magazine.
Tool Change System Comparison
| System Type | Change Time | Tool Capacity | Common Applications |
|---|---|---|---|
| Turret Type | 0.5-2 seconds | 4-12 tools | Lathes, simple mills |
| Magazine Type | 2-10 seconds | 10-100+ tools | Machining centers, advanced cnc router machine |
| Gantry Loader | 5-15 seconds | Unlimited (external storage) | High-production systems |
Auxiliary Devices in CNC Machines
Beyond the primary motion systems, CNC machines rely on a variety of auxiliary devices to support and enhance their operation. These components, while not directly involved in cutting operations, play crucial roles in ensuring safety, efficiency, and quality in the machining process.
In a cnc router machine, auxiliary devices might include dust collection systems to remove debris generated during cutting, especially when working with materials like wood or composites that produce significant dust. These systems not only maintain a cleaner work environment but also protect machine components from premature wear caused by airborne particles.
Workholding devices represent another critical category of auxiliary equipment, providing secure clamping of the workpiece during machining. The type of workholding varies widely based on the application and may include vises, clamps, chucks, fixtures, or vacuum tables. In a cnc router machine used for sheet material processing, vacuum tables are particularly common, using atmospheric pressure to hold materials firmly in place without mechanical clamping that might interfere with the cutting path.
Coolant systems are essential auxiliary devices in metalworking CNC machines, delivering cutting fluids to the tool-workpiece interface to reduce friction, dissipate heat, and flush away chips. These systems can be simple flood coolants or more sophisticated mist systems that use compressed air to atomize the coolant, reducing fluid consumption while maintaining effectiveness.
Chip conveyor systems remove chips and swarf from the machining area, preventing accumulation that could interfere with operations or cause safety hazards. These systems range from simple augers to more complex belt or chain conveyors, often with chip crushers to reduce chip size for easier disposal or recycling.
Probing systems represent a more advanced category of auxiliary devices, enabling in-machine measurement of workpieces. These touch-trigger or scanning probes can verify workpiece alignment, measure features after machining, and even automatically compensate for any deviations from the program, ensuring dimensional accuracy without removing the part from the machine.
Tool length setters and tool presetter systems are invaluable for efficiently setting tool offsets, allowing operators to measure tool dimensions outside the machine or in-cycle, reducing setup time and improving accuracy. These systems are particularly beneficial in machines with automatic tool changers, ensuring consistent tool length and diameter values in the CNC program.
Modern CNC machines often incorporate advanced auxiliary systems like thermal compensation devices, which monitor and adjust for temperature changes that could affect machine geometry. This is especially important in high-precision applications where even minute thermal expansion or contraction can impact part accuracy.
Safety-related auxiliary devices include interlocked enclosures, emergency stop systems, and presence-sensing devices that prevent access to the machining area during operation. These components are essential for protecting operators while allowing visibility of the machining process.
CNC Auxiliary Systems
A comprehensive view of CNC auxiliary devices including coolant delivery, chip removal, and workholding systems that support machining operations.
Common Auxiliary Systems and Their Functions
Dust Collection
Removes particulate matter, essential for cnc router machine
Workholding
Secures workpieces during machining operations
Coolant Systems
Controls temperature and lubricates cutting zone
Robotic Loaders
Automates workpiece loading and unloading
Probing Systems
Performs in-machine measurements and inspections
Thermal Control
Regulates temperature to maintain precision
Typical CNC Machines
CNC technology has evolved into numerous specialized machine types, each optimized for specific manufacturing processes and applications. These machines incorporate the motion systems and auxiliary devices discussed, tailored to their particular functions.
CNC Milling Machines
CNC milling machines use rotating cutting tools to remove material from workpieces, capable of producing complex shapes with high precision. These machines range from small benchtop models to large, multi-axis machining centers.
Vertical machining centers (VMCs) feature spindles that move vertically, while horizontal machining centers (HMCs) have horizontally oriented spindles, often with pallet changers for increased productivity. 5-axis milling machines add rotational axes to enable complex contouring operations.
Modern CNC mills incorporate high-speed spindles, rapid traverse rates, and advanced control systems that support complex programming and toolpath optimization, making them versatile enough for both prototyping and high-volume production.
CNC Lathes and Turning Centers
CNC lathes rotate the workpiece while stationary cutting tools shape it, ideal for producing cylindrical parts. These machines excel at creating rotational symmetry, with capabilities including turning, facing, threading, boring, and grooving.
Modern turning centers often include live tooling – rotating tools that can perform milling operations while the workpiece is indexed – eliminating the need for secondary operations on other machines. Multi-spindle lathes can process multiple workpieces simultaneously, significantly increasing production rates.
Swiss-style CNC lathes specialize in small, precise parts, feeding bar stock through a guide bushing for enhanced stability during high-speed machining of long, slender components.
CNC Router Machines
The cnc router machine is a versatile tool used primarily for cutting, shaping, and engraving a wide range of materials including wood, plastics, composites, non-ferrous metals, and even some soft metals. These machines typically feature a gantry-style design with a stationary bed and moving spindle assembly.
What distinguishes a cnc router machine from other CNC machines is its focus on high-speed cutting with lower spindle torque compared to metalworking mills, making it ideal for softer materials. They are widely used in woodworking, sign making, cabinetry, aerospace, and prototyping industries.
Advanced cnc router machine models include features like automatic tool changers, vacuum hold-down systems, and multi-axis capabilities for producing complex 3D shapes and curved surfaces.
CNC Plasma and Laser Cutters
These specialized CNC machines use plasma torches or laser beams instead of traditional cutting tools to shape materials, primarily metals in the case of plasma cutters and a wide range of materials including metals, plastics, and fabrics for laser systems.
CNC plasma cutters create an electric arc through ionized gas (plasma) that reaches temperatures up to 30,000°F (16,650°C), melting and blowing away material. They are valued for their speed in cutting thick metal sheets and plates.
Laser cutters use focused laser beams for precise cutting with minimal heat-affected zones, offering superior accuracy and edge quality compared to plasma cutting. They range from small CO2 lasers for non-metallic materials to high-power fiber lasers for cutting thick metal.
CNC EDM Machines
Electrical Discharge Machining (EDM) uses controlled electrical discharges to erode material, enabling precise machining of hard materials and complex shapes that would be difficult with traditional methods.
CNC Wire EDM
A specialized form of EDM that uses a thin, electrically charged wire as an electrode to cut complex shapes with extremely tight tolerances, commonly used in tool and die making.
CNC Grinding Machines
These machines use abrasive wheels for precision finishing operations, achieving tight tolerances and superior surface finishes on metal parts, with applications ranging from tool sharpening to bearing raceway grinding.
Evolution of CNC Machine Capabilities
The Future of CNC Motion Systems
The continued advancement of CNC technology promises even more sophisticated motion systems with enhanced precision, speed, and efficiency. Developments in servo motor technology, including higher torque-density designs and improved control algorithms, will enable faster acceleration and deceleration without sacrificing accuracy.
Integration of artificial intelligence and machine learning into CNC control systems will optimize motion parameters in real-time, adapting to material variations and tool wear for consistent results. This adaptive control will be particularly beneficial in applications like the cnc router machine, where material properties can vary significantly between workpieces.
The adoption of digital twins – virtual replicas of physical machines – will allow for advanced simulation and optimization of motion sequences before actual machining, reducing setup time and minimizing errors. Combined with IoT connectivity, this will enable predictive maintenance of motion system components, identifying potential issues before they cause downtime.
As additive manufacturing (3D printing) continues to evolve alongside subtractive CNC processes, hybrid machines that combine both technologies will become more prevalent, requiring innovative motion systems that can seamlessly transition between deposition and cutting operations.
Ultimately, the future of CNC motion systems lies in achieving greater integration, intelligence, and precision while maintaining the user-friendly operation that has made CNC technology accessible across industries. From the humble cnc router machine to the most advanced multi-axis machining centers, these developments will continue to push the boundaries of what's possible in manufacturing.
